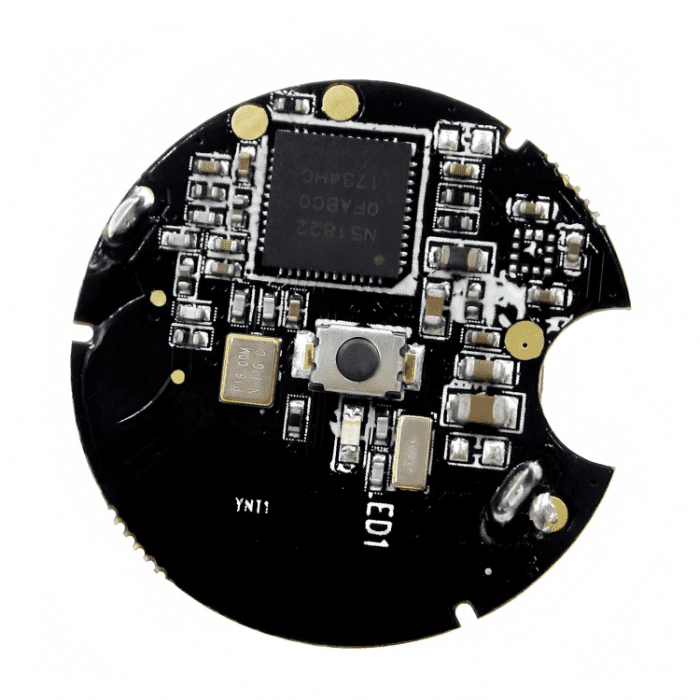

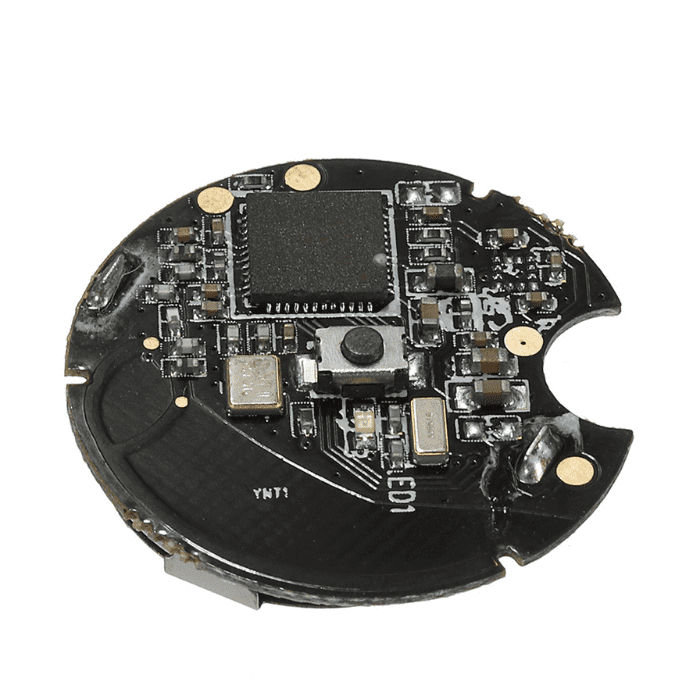

NRF51822 Ibeacon Wireless Bluetooth Module
NRF51822 Ibeacon Wireless Bluetooth Module
Low stock: 1 left
Couldn't load pickup availability
Contact form
- This is NRF51822 Ibeacon Wireless Bluetooth Module
- Easy and fast customization of extremely low cost enclosures
- Beacon barcode for easy identification
- Support IOS7.0, Android 4.3 and above
- UUID, Major, Minor and other parameters can be changed according to your needs
- This board is compatible with Apples iBeacon technological requirements and is usable with systems.
NRF51822 Ibeacon Wireless Bluetooth Module
The NRF51822 iBeacon Wireless Bluetooth Module is a low-power, multi-protocol wireless system-on-chip (SoC) that is designed for Bluetooth low energy and 2.4GHz ultra-low-power wireless applications. This module is ideal for commercial advertising and indoor location-based services due to its accurate hardware and robust firmware. This NRF is a general-purpose, ultra-low power SoC that is ideally suited for Bluetooth Low Energy and 2.4 GHz proprietary wireless applications. This module is based on Nordic's high-performance wireless SOC chip NRF51822 and is a complete low-cost, low-power design for Bluetooth low-energy applications.
The NRF51822 module is ultra-compact at 20mm diameter and can run from CR1632 coin-cell batteries, making it an ideal solution for wearable devices, IoT sensors, and other battery-operated devices. The NRF51822 is a multiprotocol SoC with Bluetooth Low Energy (BLE) and a 2.4GHz transceiver that supports both chip solutions and module solutions. If you're interested in programming the NRF51822 iBeacon module, note that Core Bluetooth is a fairly low-level framework and not very easy to learn.
Applications:
- Indoor navigation
- Mobile payment
- In-store shopping guide
- Flow analysis
Package Includes:
- 1 x NRF51822 Ibeacon Wireless Bluetooth Module
Specifications:
| Operating Voltage | 2V to 3.6V |
| Frequency | 2402~2480MHz |
| Number of channels | 40 |
| Emission current | 10.5mA |
| Transmission rate | 1Mbps |
| Dimensions | 25x25x4mm |
| Weight | 4g |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
NRF51822
NRF51822 BLE4 2.4GHz Bluetooth 4.0 Module
HC-05 Bluetooth Module
Found a better price?
Let us know!
We'll try to match the price for you
1. What is nRF51822?
The nRF51822 is a versatile System on Chip (SoC) engineered for Bluetooth Low Energy and 2.4 GHz proprietary wireless applications, offering ultra-low power consumption. It integrates a 32-bit ARM Cortex-M0 CPU, 256/128 KB flash, and 32/16 KB RAM. This single-chip solution is an effective multi-protocol solution for ULP wireless applications.
2. What is the difference between nRF51802 and nRF51822?
The nRF51802 is a cost-effective alternative to the nRF51822, with comparable features but slightly reduced performance, including 2 dB less RX sensitivity and marginally higher RX and TX peak currents. The nRF51822 is an established chip in its third edition, while the nRF51802 is a lower-cost variant with a weaker radio and higher current consumption. Both chips are multiprotocol SoCs developed for Bluetooth Low Energy applications.
