STM32F030F4P6 Development Board

STM32F030F4P6 Development Board

Rs. 285
Rs. 456 Rs. 285
Sale Sold out 38% off Best Price Guaranteed
You save Rs. 171
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.
Submit your Bulk Enquiry Here
  • This is STM32F030F4P6 Development Board
  • It is a 32-bit ARM Cortex -M0 CPU, frequency up to 48 MHz, high-speed built-in memories

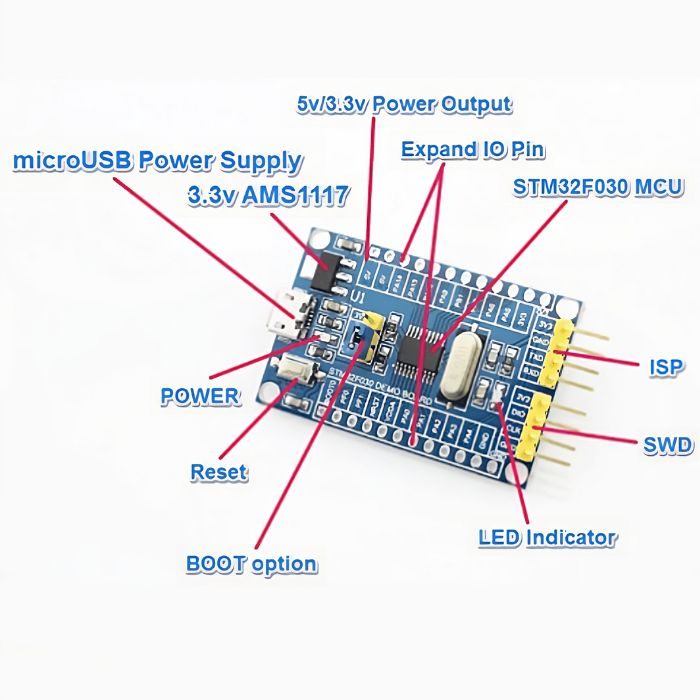

  • This board integrates micro USB power supply interface, ISP / SWD interface programming / debugging startup mode selection and so on to take you to the ARM Cortex world easily
  • The STM32F030x microcontroller operates in the -40 to +85 °C temperature range, from a 2.4 to 3.6 V power supply

STM32F030F4P6 Development Board

The STM32F030F4P6 core board development board core ARM CORTEX-M0 incorporates the high-performance ARM Cortex™-M0 32- bit RISC core operating at a 48 MHz frequency, high-speed embedded memories (up to 64 Kbytes of Flash memory and up to 8 Kbytes of SRAM), and an extensive range of enhanced peripherals and I/Os. All devices offer standard communication interfaces (up to two I2Cs, up to two SPIs, and up to two USARTs), one 12-bit ADC, up to 6 general-purpose 16-bit timers, and an advanced-control PWM timer.

The STM32F030x microcontroller operates in the -40 to +85 °C temperature range, from a 2.4 to 3.6 V power supply. A comprehensive set of power-saving modes allows the design of low-power applications. The STM32F030x microcontroller includes devices in four different packages ranging from 20 pins to 64 pins. Depending on the device chosen, different sets of peripherals are included. The description below provides an overview of the complete range of STM32F030x peripherals proposed.

These features make the STM32F030x microcontroller suitable for a wide range of applications such as application control and user interfaces, handheld equipment, A/V receivers and digital TV, PC peripherals, gaming platforms, e-bikes, consumer appliances, printers, scanners, alarm systems, video intercoms, and HVACs

Applications:

  • Handheld equipment
  • A/V receivers and digital TV
  • PC peripherals
  • Gaming platforms
  • E-bikes
  • consumer appliances
  • Printers, scanners
  • Alarm systems
  • Video intercoms
  • HVACs

Package Includes:

  • 1 x STM32F030F4P6 Development Board

Specifications:

Input Voltage (V)

3.3V – 15V
Output Voltage(V)

3.3V ~ 5V @1A
CPU Architecture

ARM CORTEX-M0
Microprocessor Model

STM32F030F4P6
Dimensions(LxWxH)

48 x 30 x 8mm
Weight

7gm

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

People Also Buy

-34%
STM32F103C8T6 ARM Development Board-Robocraze

STM32F103C8T6 ARM Development Board

Rs. 196
Rs. 299 Rs. 196
You save Rs. 103
Incl. GST (No Hidden Charges)
Sold out
-36%
UNO+WiFi R3 ATmega328P+Node MCU ESP8266 CH340G Board Compatible with Arduino-Robocraze

Arduino UNO+WiFi R3 ATmega328P+Node MCU ESP8266 CH340G Compatible Board

Rs. 482
Rs. 749 Rs. 482
You save Rs. 267
Incl. GST (No Hidden Charges)
Sold out
-9%
Mega 2560 Pro ATmega2560 Board compatible with Arduino-Robocraze

Arduino Mega 2560 Pro ATmega2560 compatible Board

Rs. 1,549
Rs. 1,699 Rs. 1,549
You save Rs. 150
Incl. GST (No Hidden Charges)
Sale

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 4

ADDITIONAL RESOURCES

1. How many pins are there in STM32F030F4P6 Development Board?

  • STM32F030F4P6 Development Board Pin Diagram:

STM32F030F4P6 Pin Diagram

2. What is STM32F030F4P6 Board?

  • The STM32F030F4P6 microcontrollers have a forty eight MHz Arm® Cortex®-M0 32-bit RISC processor, high-pace embedded storage (as much as 256 Kbytes of Flash reminiscence and as much as 32 Kbytes of SRAM), and a extensive variety of upgraded peripherals and I/Os. Standard communique interfaces (up to 2 I2Cs,  SPIs, and up to 6 USARTs) are to be had on all devices, in addition to one 12-bit ADC, seven general-motive 16-bit timers, and one advanced-manipulate PWM timer. The STM32F030F4P6 microcontrollers are available in 4 one-of-a-kind applications with pin counts starting from 20 to 64. Different peripherals are covered relying at the tool used. The following description offers an outline of the complete spectrum of STM32F030F4P6 peripherals to be had.

3. What are the applications of STM32F030F4P6 Development Board?

  • The STM32F030F4P6 microcontrollers have a extensive variety of applications, which includes utility manipulate and person interfaces, hand-held equipment, A/V receivers, virtual TV, PC peripherals, gaming, and GPS platforms, commercial applications, PLCs, inverters, printers, scanners, alarm systems, video intercoms, and HVACs.
