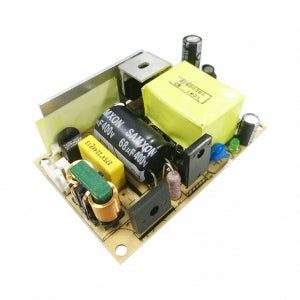

Mornsun LO45-10B48 AC/DC Converter
Mornsun LO45-10B48 AC/DC Converter
In stock
Regular price
Rs. 2,105
Regular price
Rs. 2,875
Sale price
Rs. 2,105
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.
Couldn't load pickup availability
Contact form
- Universal 85-264VAC or 100-370VDC input voltage
- 3×2 inch high power density
- Operating ambient temperature range: -25℃ to +70℃
- Output short circuit, over-current, over-voltage protection
- High efficiency, high reliability
- Regulated output, low ripple & noise
- EMI performance meets CISPR32/EN55032 CLASS B
- 2 years warranty
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LO45-10B48 AC/DC Converter
The LO45-10B48 is a compact, high-efficiency AC/DC converter that provides a regulated output voltage of 48V at a maximum current of 940mA. It has a universal input voltage range of 85-264VAC or 100-370VDC, making it suitable for use in a wide variety of applications. The LO45-10B48 also features short circuit, over-current, and over-voltage protection, as well as low ripple and noise. It is certified to IEC/EN61000-4 and CISPR32/EN55032 and meets UL/EN/IEC62368 standards.
Features:
- Compact size
- High efficiency
- Universal input voltage range
- Regulated output voltage
- Short circuit, over-current, and over-voltage protection
- Low ripple and noise
- IEC/EN61000-4 and CISPR32/EN55032 certified
- UL/EN/IEC62368 compliant
Package Includes:
1 x Mornsun LO45-10B48 AC/DC Converter
Specifications:
| Output power | 45W |
| Output voltage | 48V |
| Output current | 940mA |
| Input voltage range | 85-264VAC or 100-370VDC |
| Input frequency | 47-63Hz |
| Input current | 115VAC: 1200mA, 230VAC: 700mA |
| Output voltage accuracy | ±2% |
