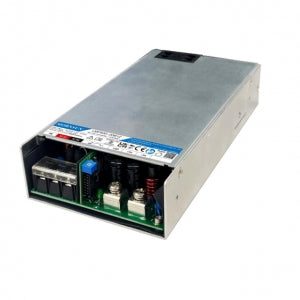

Mornsun LMF600-20B24 AC/DC 600W Enclosed Switching Power Supply
Mornsun LMF600-20B24 AC/DC 600W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
Contact form
- Universal 80 - 277VAC or 110- 390VDC input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -40℃ to +70℃
- Low standby power consumption, high efficiency, active PFC
- High I/O isolation test voltage up to 4000VAC
- The base plate with conformal coating
- Output short circuit, over-current, over-voltage, over-temperature protection
- Remote sense compensation, remote ON/OFF function
- DC_OK function
- Suitable for BF application
- With 5V/1A standby power
- Operating altitude up to 5000m
- Safety according to IEC62368, EN60335, EN61558
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LMF600-20B24 AC/DC 600W Enclosed Switching Power Supply
The LMF600-20B24 is a 600W enclosed AC/DC switching power supply from Mornsun. It features a universal AC input voltage of 80-277VAC or 110-390VDC, a single output voltage of 24VDC, and a maximum output current of 25A. The power supply also has a power factor correction (PFC) function, which helps to improve the efficiency of the power supply and reduce the amount of harmonics that are generated.
The LMF600-20B24 is designed for use in a variety of applications, including industrial, medical, and security systems. It is also suitable for use in telecommunications and networking equipment. The power supply is housed in a rugged metal enclosure that protects it from the elements and provides a high level of safety.
Features:
- Universal AC input voltage of 80-277VAC or 110-390VDC
- Single output voltage of 24VDC
- Maximum output current of 25A
- Power factor correction (PFC) function
- Rugged metal enclosure
- High level of safety
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LMF600-20B24 AC/DC 600W Enclosed Switching Power Supply
Specifications:
| Power | 600W |
| Input voltage | 80-277VAC or 110-390VDC |
| Output voltage | 24VDC |
| Output current | 25A |
| Power factor | 0.99 |
| Efficiency | 95% |
| Dimensions | 220 x 120 x 85mm |
| Weight | 4.5kg |
