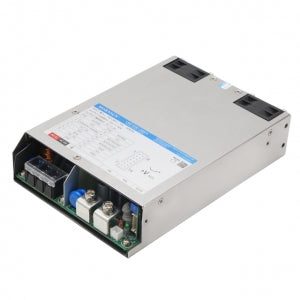

Mornsun LMF1000-20B54 AC/DC1000W Enclosed Switching Power Supply
Mornsun LMF1000-20B54 AC/DC1000W Enclosed Switching Power Supply
In stock
Couldn't load pickup availability
Contact form
- Wide range input voltage: 90 - 264VAC or 120 - 370VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -40℃ to +70℃ (Non-condensing)
- High reliability, efficiency up to 94%
- Wide range of adjustable output voltage
- Output short circuit, over-current, over-voltage, over-temperature protection
- Support 3+1 parallel redundancy, current sharing
- Built-in active PFC function
- Operating up to 5000m altitude
- Fan speed automatic adjustable
- 5 years warranty
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LMF1000-20B54 AC/DC1000W Enclosed Switching Power Supply
The LMF1000-20B54 is a universal input, enclosed AC-DC switching power supply from Mornsun. It features a wide input voltage range of 90-264VAC or 120-370VDC, a single output of 54VDC, and a maximum output current of 18.7A. The power supply is also equipped with a number of features to improve its performance and reliability, including a high efficiency of up to 94%, a low no-load power consumption of less than 1W, and a double or reinforced insulation system. The LMF1000-20B54 is compliant with a variety of safety and performance standards, including IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, EN60601, and GB4943. It is suitable for a wide range of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.
Features:
- Universal input voltage range of 90-264VAC or 120-370VDC
- Single output of 54VDC
- Maximum output current of 18.7A
- High efficiency of up to 94%
- Low no-load power consumption of less than 1W
- Double or reinforced insulation system
- Compliant with a variety of safety and performance standards
check out : Mornsun LMF1000-20B15 AC/DC1000W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LMF1000-20B54 AC/DC1000W Enclosed Switching Power Supply
Specifications
| Power | 1019W |
| Input voltage | 90-264VAC or 120-370VDC |
| Output voltage | 54VDC |
| Output current | 18.7A |
| Efficiency | 94% |
| No-load power consumption | <1W |
| Insulation | Double or reinforced |
| Dimensions | 220 x 100 x 120mm |
| Weight | 3.5kg |
