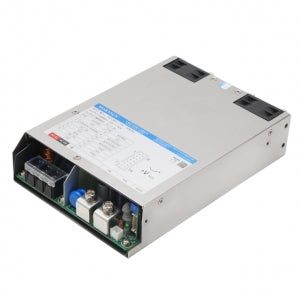

Mornsun LMF1000-20B48 AC/DC1000W Enclosed Switching Power Supply
Mornsun LMF1000-20B48 AC/DC1000W Enclosed Switching Power Supply
In stock
Couldn't load pickup availability
Contact form
- Wide range input voltage of 90-264VAC or 120-370VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range of -40℃ to +70℃ (Non-condensing)
- High reliability, efficiency up to 94%
- Wide range of adjustable output voltage
- Output short circuit, over-current, over-voltage protection, over-temperature protection
- Support 3+1 parallel redundancy, current sharing
- Built-in active PFC function
- Operating up to 5000m altitude
- Fan speed automatic adjustable
- 5 years warranty
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LMF1000-20B48 AC/DC1000W Enclosed Switching Power Supply
The LMF1000-20B48 is a universal AC-DC switching power supply from Mornsun. It accepts both AC and DC input voltages, making it a versatile and cost-effective solution for a wide range of applications. The power supply features low no load power consumption, high efficiency, high reliability, and double or reinforced insulation. It also meets a variety of industry standards, including IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, EN60601, and GB4943. The LMF1000-20B48 is widely used in industrial, LED, street light control, electricity, security, telecommunications, and smart home applications.
- Universal AC input
- Accepts DC input voltage
- Low no load power consumption
- High efficiency
- High reliability
- Double or reinforced insulation
- Meets industry standards
- Widely used in industrial, LED, street light control, electricity, security, telecommunications, and smart home applications
check out : Mornsun LMF1000-20B12 AC/DC1000W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LMF1000-20B48 AC/DC1000W Enclosed Switching Power Supply
Specifications
| Output Power | 1018W |
| Series |
LMF1000-20B |
| Part Number |
LMF1000-20B48 |
| Mechanical Form | Enclosed |
| IP Level | Non-Waterproof |
| Output Voltage | 48V |
| Output Current |
21A |
