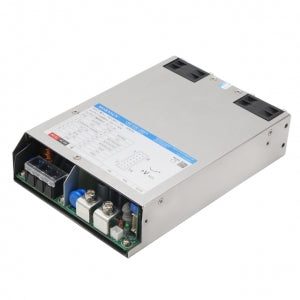

Mornsun LMF1000-20B27 AC/DC1000W Enclosed Switching Power Supply
Mornsun LMF1000-20B27 AC/DC1000W Enclosed Switching Power Supply
In stock
Couldn't load pickup availability
Contact form
- Wide range input voltage of 90-264VAC or 120-370VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range of -40℃ to +70℃ (Non-condensing)
- High reliability, efficiency up to 94%
- Wide range of adjustable output voltage
- Output short circuit, over-current, over-voltage protection, over-temperature protection
- Support 3+1 parallel redundancy, current sharing
- Built-in active PFC function
- Operating up to 5000m altitude
- Fan speed automatic adjustable
- 5 years warranty
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LMF1000-20B27 AC/DC1000W Enclosed Switching Power Supply
The LMF1000-20B27 is an enclosed AC/DC switching power supply from Mornsun. It features a universal AC input of 90-264VAC, a DC input of 120-370VDC, and an output voltage of 27VDC. The power supply has a maximum output current of 37.3A and a maximum output power of 1000W. It is also equipped with a power factor correction (PFC) function, which helps to improve the efficiency of the power supply and reduce its emissions.
The LMF1000-20B27 is a cost-effective and reliable power supply that is suitable for a wide range of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.
Features:
- Universal AC input of 90-264VAC
- DC input of 120-370VDC
- Output voltage of 27VDC
- Maximum output current of 37.3A
- Maximum output power of 1000W
- Power factor correction (PFC) function
- Cost-effective and reliable
- Suitable for a wide range of applications
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LMF1000-20B27 AC/DC1000W Enclosed Switching Power Supply
Specifications
| Input voltage | 90-264VAC |
| Input frequency | 50/60Hz |
| Output voltage | 27VDC |
| Output current | 37.3A |
| Output power | 1000W |
| Efficiency | 94% |
| Ripple | <0.5% |
| Dimensions | 190 x 120 x 60mm |
| Weight | 3.5kg |
