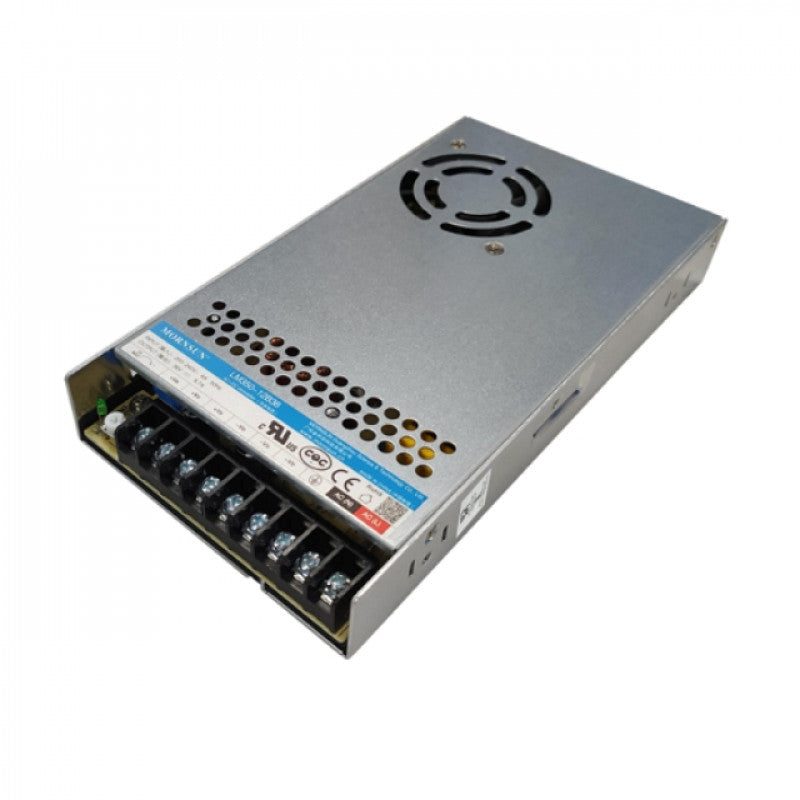

Mornsun LM350-12B24 AC/DC 350W Enclosed Switching Power Supply

Mornsun LM350-12B24 AC/DC 350W Enclosed Switching Power Supply

The LM350-12B24 is a cost-effective, reliable, and efficient enclosed AC-DC switching power supply from Mornsun. It features selectable AC input and accepts DC input voltage, making it versatile and easy to use. The LM350-12B24 meets a wide range of industry standards, including IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, and GB4943. It is widely used in a variety of industries, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.

Features

• Selectable AC input: The LM350-12B24 can accept input voltages from 85 to 264VAC, making it compatible with a wide range of power sources.
• DC input voltage acceptance: The LM350-12B24 can also accept input voltages from 9 to 35VDC, making it even more versatile.
• Cost-effective: The LM350-12B24 is a cost-effective solution for a variety of applications.
• Reliable: The LM350-12B24 is designed to be reliable and durable, with a long service life.
• Efficient: The LM350-12B24 is an efficient power supply, with a high power factor and low no-load power consumption.
• Meets industry standards: The LM350-12B24 meets a wide range of industry standards, making it a safe and reliable choice for a variety of applications.
• Widely used: The LM350-12B24 is widely used in a variety of industries, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.

If you are looking for a cost-effective, reliable, and efficient AC-DC switching power supply, the LM350-12B24 from Mornsun is a great option. It features a wide range of capabilities and meets a variety of industry standards, making it a safe and reliable choice for a variety of applications.

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x Mornsun LM350-12B24 AC/DC 350W Enclosed Switching Power Supply

Specifications
