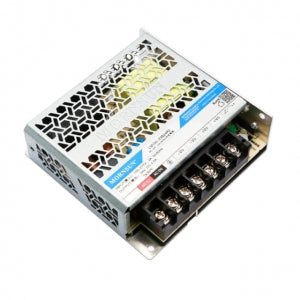

Mornsun LM100-23B24R2 AC/DC 100W Enclosed SMPS
Mornsun LM100-23B24R2 AC/DC 100W Enclosed SMPS
In stock
Couldn't load pickup availability
Contact form
- Universal input voltage range: 80 - 305VAC or 100 - 430VDC
- Accepts both AC or DC input (dual-use of the same terminal)
- Operating ambient temperature range: -40°C to +85°C
- Compact size with high power density
- Low standby power consumption, high efficiency
- High I/O isolation test voltage up to 4000VAC
- Low ripple and noise
- Output short circuit, over-current, and over-voltage protection
- Designed to meet OVC III safety standard (EN62477)
- Operating altitude up to 5000m
Mornsun LM100-23B24R2 AC/DC 100W Enclosed SMPS
The LM100-23B24R2 is a 100W enclosed switching power supply from Mornsun. It has a universal input voltage of 80-305VAC or 100-430VDC, and can output a single regulated voltage of 24V at up to 4.5A. The power supply has a high efficiency of up to 90.5%, and a low standby power consumption of less than 1W. It also has a wide operating temperature range of -40 to +85 degrees Celsius.
The LM100-23B24R2 is a compact and lightweight power supply that is ideal for a variety of applications, including industrial, medical, and security systems. It is also compliant with RoHS and CE standards.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM100-23B24R2 AC/DC 100W Enclosed SMPS
Specifications
| Specification | Value |
|---|---|
| Output Power | 108W |
| Input Voltage | 80-305VAC or 100-430VDC |
| Output Voltage | 24V |
| Output Current | 4.5A |
| Efficiency | Up to 90.5% |
| Standby Power Consumption | Less than 1W |
| Operating Temperature Range | -40 to +85 degrees Celsius |
| Dimensions | 99 x 97 x 30mm |
| Weight | 0.6kg |
