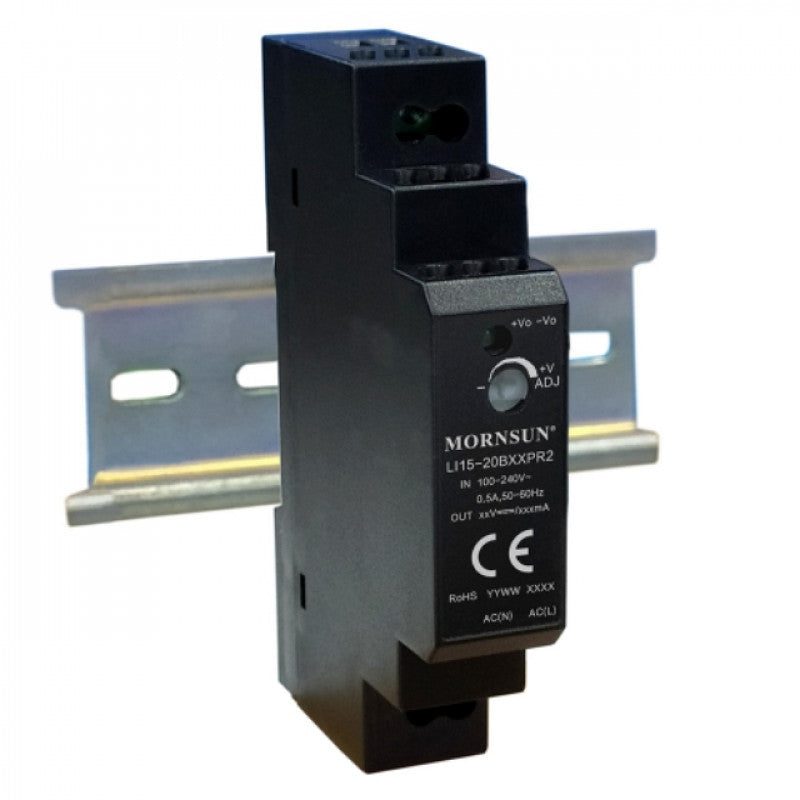

Mornsun LI15-20B24PR2 AC/DC 15W DIN-Rail Power Supply

Mornsun LI15-20B24PR2 AC/DC 15W DIN-Rail Power Supply

In stock

Rs. 1,362
Rs. 1,860 Rs. 1,362
Sale Sold out 27% off Best Price Guaranteed
You save Rs. 498
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.
Submit your Bulk Enquiry Here
  • Universal input voltage: 85-264VAC (277VAC available) or 120-370VDC (390VDC available)
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range: -40℃ to +70℃
  • High I/O isolation voltage: up to 4000VAC
  • Industrial-grade design
  • OVC III (EN61558-1 standards)
  • Low standby power consumption, high efficiency
  • Low ripple & noise
  • Output short circuit, over-current, over-voltage protection
  • DIN rail TS35X7.5/ TS35X15 mountable
  • Safety according to UL/IEC62368, IEC/EN61010, IEC60335, IEC/EN61558

This product is not available for store pickup. Apologies for the inconvenience caused

Mornsun LI15-20B24PR2 AC/DC 15W DIN-Rail Power Supply

The LI15-20B24PR2 is a cost-effective, energy-efficient AC-DC converter from Mornsun. It is compliant with international IEC62368 standards for EMC and safety, and meets IEC/EN61000-4, CISPR32, EN55032, UL62368, IEC62368 and EN62368. The converter is lightweight and has an extremely compact design, making it ideal for space-saving applications. It is also ideal for harsh environments, such as industrial control equipment machinery.

Here are some of the key features of the LI15-20B24PR2:

  • Cost-effective
  • Energy efficient
  • Standard DIN-rail mounting
  • High level of stability and immunity to noise
  • Compliant with international EMC and safety standards
  • Lightweight and compact design
  • Ideal for space-saving applications
  • Ideal for harsh environments

If you are looking for a cost-effective, energy efficient, and reliable AC-DC converter, the LI15-20B24PR2 is a great option. It is ideal for a variety of applications, including industrial control equipment machinery and harsh environments.

check out : Mornsun LI15-20B12PR2 AC/DC 15W DIN-Rail Power Supply

Note:

  • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
  • The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
  • All index testing methods in this datasheet are based on our company's corporate standards
  • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
  • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
  • The output voltage can be adjusted by the ADJ, clockwise to increase
  • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
  • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x Mornsun LI15-20B24PR2 AC/DC 15W DIN-Rail Power Supply

Specifications:

Type DIN Rail Single Output
Output Power 15.2W
Series LI15-20B
Part Number LI15-20B24PR2
Mount DIN-Rail
IP Level  Non-Waterproof
Output Voltage 24V
Output Current 0.63A
