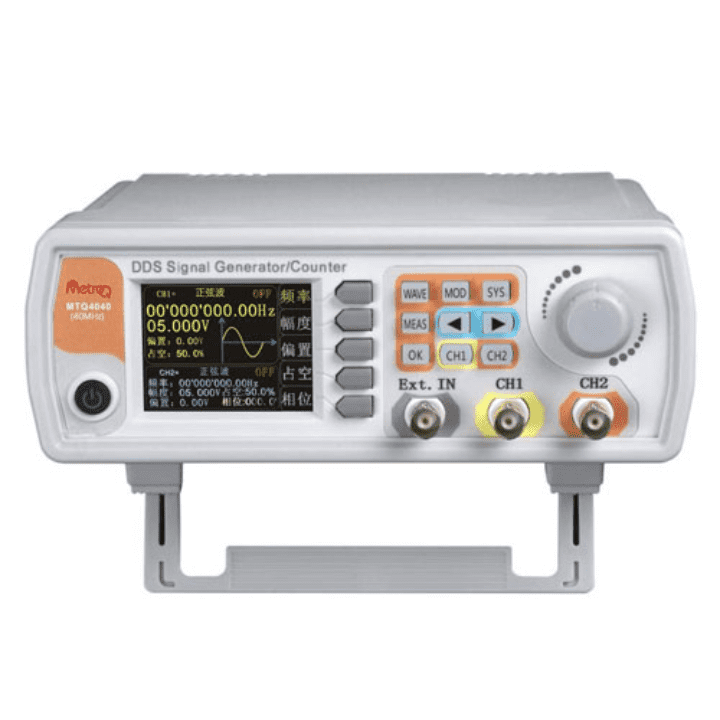

MetroQ MTQ1515 DDS Signal / Function Generator with Counter with USB- 15 Mhz
MetroQ MTQ1515 DDS Signal / Function Generator with Counter with USB- 15 Mhz
Low stock: 6 left
Couldn't load pickup availability
Contact form
- Waveform Type : Sine Square Pulse (Adjustable duty Cycle, precise adjustment of pulse width and period), Triangular wave, Partial sine wave, CMOS wave, DC Level (set DC amplitude by adjusting offset), Half wave, Full wave, Positive staircase wave, Anti-Ladder wave, Noise wave, Exponential wave, Exponential drop, Multisonic wave, Symplectic pulse and Lorenz pulse and 60 Arbitrary wave forms..
- Display Type - 2.4inch TFT COLOR LCD Display. Arbitrary Wave - 1 to 60 total 60 groups (15 groups by default as power on).
- Store & Load - Position - 00 to 99 (00 memory location parameter is loaded by default as power on).
- Interface Mode - USB; External Interface - with TTL level mode serial interface for user secondary development; Communication Speed - Adopt Standard 115200 bps; PROTOCOL - Using the command line, the protocol is made public..
- Operating Characteristics - All key operations, knob continuous adjustment..
| This product is not available for store pickup. Apologies for the inconvenience caused |
MetroQ MTQ1515 DDS Signal / Function Generator with Counter with USB- 15 Mhz
Arbitrary Waveform Generator adopts large scale FPGA integrated circuit and high-speed MCU microprocessor. The internal circuit adopts the active crystal oscillator as the benchmark. So the signal stability is greatly strengthened. Using Dual-channel DDS signal and TTL electric level output to generate precise, stable, low distortion output signal. includes Sine wave, Square wave, Triangle wave, Saw tooth wave, Pulse wave, white noise, user-defined waveform etc. each channel can be independently set the parameters. With linear sweep(Max. up to 999.9s) and logarithmic frequency sweep functions. Has a frequency measurement, period measurement, positive and negative pulse width measurement and counting function.
Storage feature: You can store 99 groups instrument state parameters set by the user, can be called up to Reproduce. The frequency output of Sine wave can be up to 15MHz. 200MSa/s sampling rate. It has 60 positions for saving user-defined waveform. Waveform Length of each one is 2048 and vertical resolution is 14 bits This Signal Generator is the ideal instrument for electronic engineering, laboratories, production lines, teaching and scientific research.
Package Includes:
- 1 x MetroQ MTQ1515 DDS Signal / Function Generator with Counter with USB- 15 Mhz

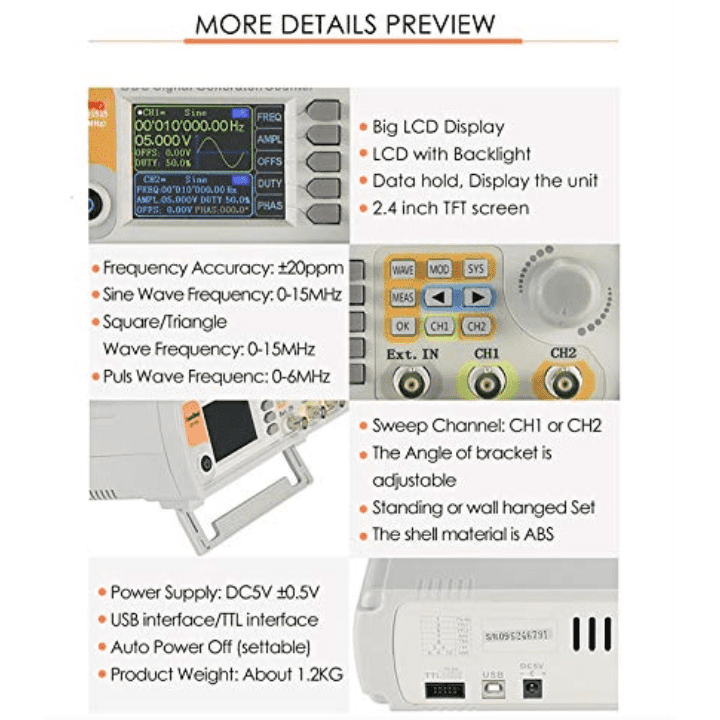

Specifications:
| Brand | MetroQ |
| Power Supply | DC 5V ±0.5 |
| Screen | 2.4 Inch TFT Screen |
| Frequency Accuracy | ±20ppm |
| Sine Wave Frequency | 0-15MHz |
| Square/Triangle Wave Frequency | 0-15MHz |
| Pulse Wave Frequency | 0-6MHz |
| Sweep Channel | CH1 or CH2 |
| Weight | 1.2 Kg |
