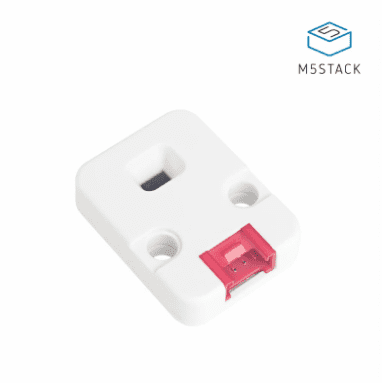

M5Stack Time-of-Flight Ranging Unit (VL53L0X)
M5Stack Time-of-Flight Ranging Unit (VL53L0X)
Out of stock
Regular price
Rs. 919
Regular price
Rs. 1,130
Sale price
Rs. 919
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.
Couldn't load pickup availability
Contact form
- High precision
- Measure absolute distances up to 2m
- Measurement accuracy ±3%
- The wavelength of laser: 940nm
- Program Platform: Arduino, UIFlow(Blockly, Python)
- Two Lego-compatible holes
| Also checkout M5 Stack Development Kits, Sensors&Hats, Cameras and Modules collection |
M5Stack Time-of-Flight Ranging Unit (VL53L0X)
ToF employs time-of-flight techniques to resolve the distance between the emitting point and the reach point of a subject, measuring the round trip time of an artificial light signal provided by a laser.
This unit integrated a distance measuring sensor VL53L0x providing accurate distance measurement whatever the target reflectance, unlike conventional technologies. It can measure absolute distances up to 2m in less than 30ms.

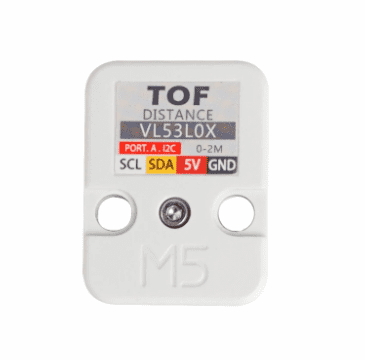

This unit communicates with M5Core via I2C(0x29). In this case, make sure you use the 3.3V on SDA and SCL, M5Core GROVE provides 3.3V to data pins, 5V to the power pin. only 3.3v allowed on VL53L0x.
Applications:
- 1D gesture recognition
- Laser Ranging
- 3D structured light imaging（3D sensing）
- Camera assist (ultra-fast autofocus and depth of field)
Package Includes:
1x ToF Unit
1x Grove Cable
Specifications:
| Measuring distance | 0.3-2m |
| Measurement accuracy | ±3% |
| Dimensions |
32 x 24 x 8mm |
| Weight | 17gm |
