M5 Stack

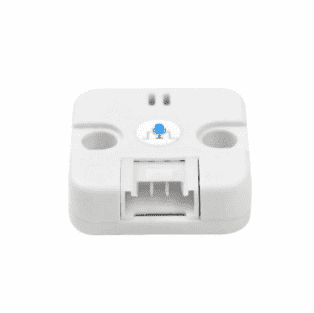

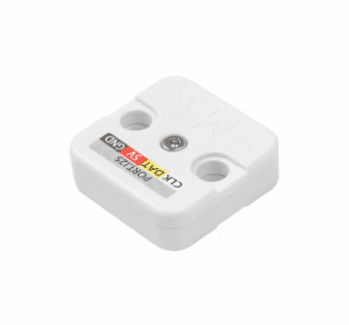

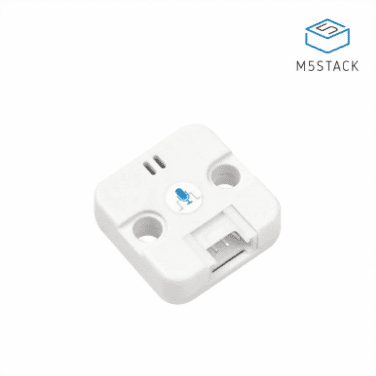

M5 Stack PDM Microphone Unit (SPM1423)
M5 Stack PDM Microphone Unit (SPM1423)
Out of stock
Regular price
Rs. 391
Regular price
Rs. 464
Sale price
Rs. 391
Unit price
/
per
You save Rs. 73
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.
Couldn't load pickup availability
Submit your Bulk Enquiry Here
Contact form

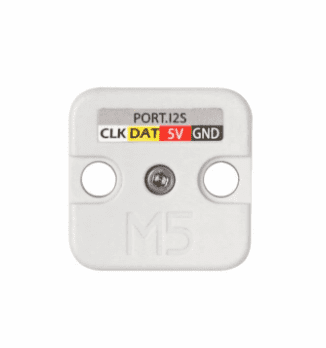

- I2S PORT,PDM encoding output (CLK/DAT)
- High sensitivity, high signal to noise ratio
- Low power consumption
- Anti-radio frequency interference
- Compatible with LEGO
| Also checkout M5 Stack Development Kits, Sensors&Hats, Cameras and Modules collection |
M5 Stack PDM Microphone Unit (SPM1423)
PDM mini Unit is a digital MEMS silicon-based microphone based on PDM (Pulse Density Modulation) signal. The microphone has a high signal-to-noise ratio, high sensitivity, low power consumption, anti-radio frequency interference, smooth frequency response, and other characteristics. It automatically switches the microphone state according to the clock frequency (power down/activate/sleep)and can be widely used for the audio data collection on wearable devices and smart digital devices.
Applications:
- Spectrum Analyzer
- Recorder
- Noise meter

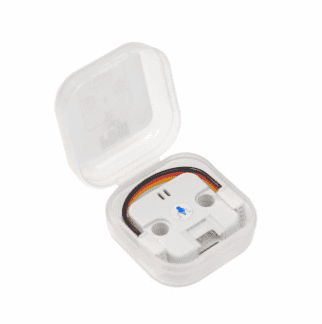

Package Includes:
1x PDM mini Unit
1x HY2.0 4P Cable(5CM)
Specifications:
| Sensitivity | 94dB SPL@1KHz Nom.:-22dBFS |
| Signal to Noise Ratio | 94dB SPL@1KHz,A-weighted Nom.:61.4dB |
| Total Harmonic Distortion | 100dB SPL@1KHz Nom.:1% |
| Working voltage range | 1.6 V to 3.6 V |
| Working Current | 600µA |

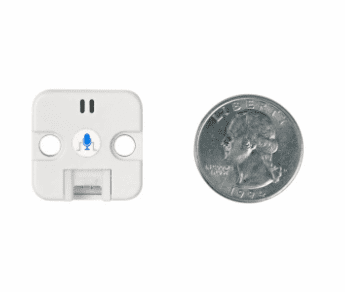

| Dimensions |
24 x 24 x 13mm |
| Weight | 8gm |
