ADXL345 Digital Angle Acceleration Sensor Module
ADXL345 Digital Angle Acceleration Sensor Module
Couldn't load pickup availability
Contact form
- Precise Movements: Measures with 4mg/LSB resolution, enabling accurate angle detection.
- Wide Compatibility: Works with both 5V and 3.3V inputs, suitable for Arduino and other microcontrollers.
- Adjustable Sensitivity: Choose from 4 ranges (+/- 2G to +/- 16G) to match your application needs.
- Noise-Resistant: Onboard RT9161 provides fast load speed in noisy environments.
- DIY-Friendly: Easy to integrate into hobbyist and enthusiast projects.
- Mobile Applications: Perfectly suited for measuring static and dynamic acceleration in mobile devices.
- Versatile Uses: Ideal for skew detection, gravity acceleration measurement, and impact detection.

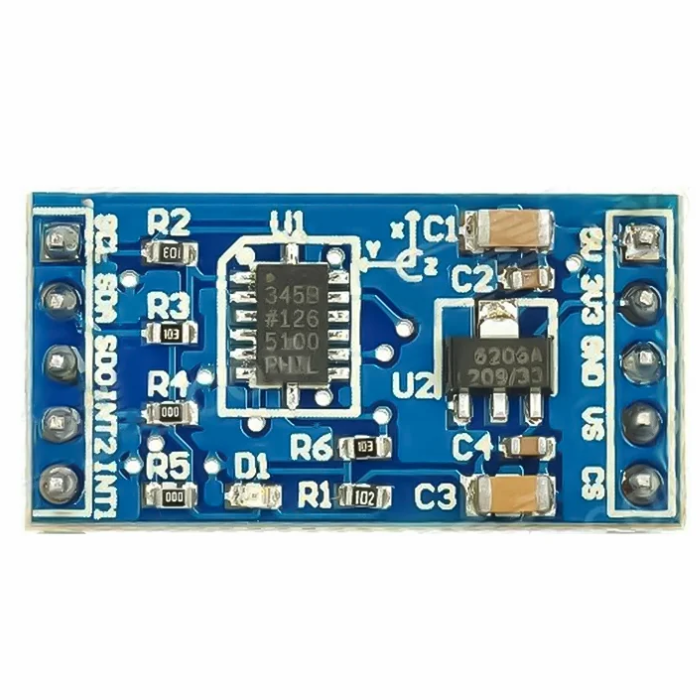

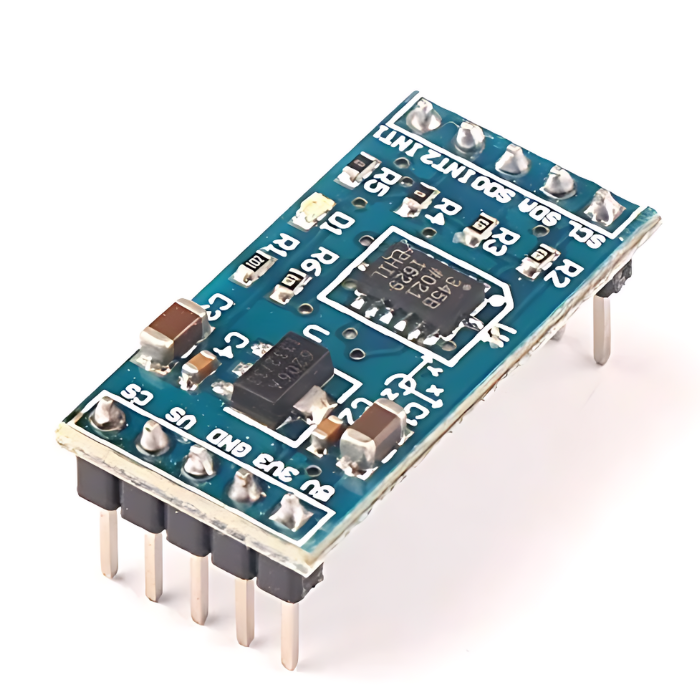

ADXL345 Digital Angle Acceleration Sensor Module
The ADXL345 Digital Angle Acceleration Sensor Module is the go-to solution for high-precision movement measurement. Whether you're working on a DIY project or need accurate angle detection, this sensor module delivers. With versatile compatibility supporting both 5V and 3.3V inputs, it seamlessly interfaces with microcontrollers like Arduino.
This sensor features wide sensitivity ranges, from +/- 2G to +/- 16G, offering flexibility for various applications. Its noise-resistant design, incorporating the onboard RT9161, ensures faster load speed, making it perfect for noisy power environments. DIY enthusiasts will appreciate its user-friendly design, and its mobile application suitability makes it a valuable tool for multiple scenarios.
Made with quality in mind, the ADXL345 promises high-resolution measurements (4mg/LSB) for changes less than 1.0° angle. From skew detection to dynamic acceleration measurement, this sensor module is a versatile choice.
Features:
- Supports 5V/3.3V input
- Onboard RT9161 faster load the appropriate speed
- Ideal for noisy power environment
- Application: DIY project.
Applications:
- Motion Sensing: The ADXL345 can be used for motion sensing in various applications, such as gaming devices, pointing devices, and handsets
- Tilt Sensing: It can be used as a tilt sensor to measure static acceleration, such as gravity
- Activity and Inactivity Detection: The ADXL345 can detect the presence or lack of motion by comparing acceleration on any axis with user-set thresholds
- Tap and Double-Tap Detection: It can detect single and double taps in any direction
- Free-Fall Detection: The ADXL345 can detect if the device is falling
- High-G Shock Detection: It can handle high-g shocks, making it suitable for applications in harsh environments
- Low Power Consumption: The ADXL345 is designed to consume minimal power, making it suitable for battery-powered devices
- Selectable Range: The ADXL345 offers multiple selectable ranges, allowing you to adjust the measurement sensitivity based on your specific needs
- Data Rate Control: You can configure the output data rate to suit your application requirements
- Integration with Microcontrollers: The ADXL345 can be easily integrated with microcontrollers and other digital devices using digital interfaces such as I2C and SPI
Package Includes:
- 1 x ADXL345 Digital Angle Acceleration Sensor Module

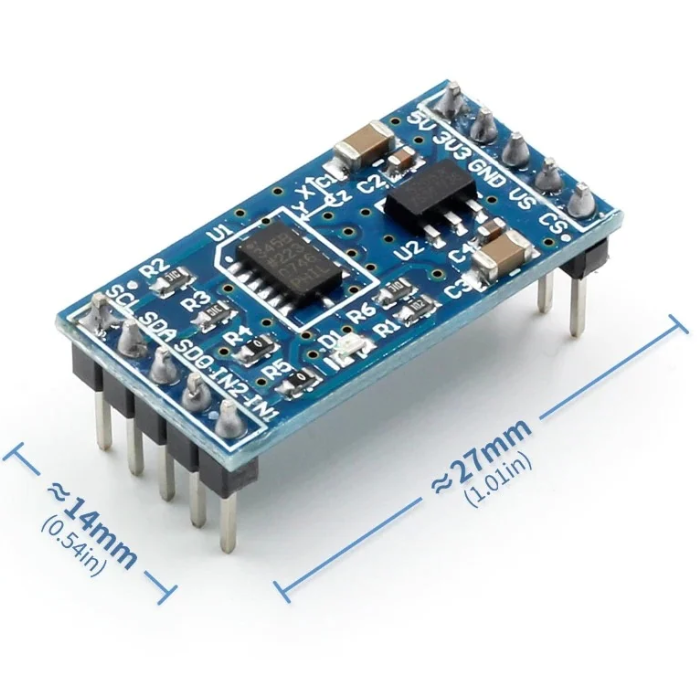

Specifications:
| Chip |
ADXL345 |
|---|---|
| Pin Pitch |
2.54 mm |
| Length(mm) |
28 |
| Width(mm) |
14 |
| Height(mm) |
11 |
| Weight(g) |
5 |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
MPU-6050 Triple-Axis Accelerometer & Gyroscope Module
Arduino Uno R3 Board compatible
ADXL335 Triple-Axis Accelerometer
Found a better price?
Let us know!
We'll try to match the price for you
ADDITIONAL RESOURCES
1. What is the purpose of ADXL345 accelerometer?
The ADXL345 accelerometer from Analog Devices is a highly advanced and precise sensor that serves the purpose of accurately measuring real-time acceleration data in various applications. Designed with cutting-edge technology, this device offers exceptional performance and reliability when it comes to detecting changes in motion, tilt, vibration or shock. The primary goal of ADXL345 is to provide accurate and reliable acceleration measurements that are essential for any design requiring movement detection. Its compact size, low power consumption and digital output make it a top choice among engineers seeking high-quality solutions for their motion sensing needs.
2. Which is better MPU6050 or ADXL345?
The MPU6050 and ADXL345 are both motion sensors, but they have some differences in terms of functionality and capabilities. The choice between them depends on your specific requirements and the features you need for your application.
| Feature | MPU6050 | ADXL345 |
|---|---|---|
| Sensor Type | Gyroscope and Accelerometer | Accelerometer |
| Degrees of Freedom (DoF) | 6 (3-axis gyroscope + 3-axis accelerometer) | 3 (Accelerometer only) |
| Digital Motion Processor (DMP) | Yes | No |
| Communication Interface | I2C | I2C |
| Power Consumption | Moderate | Low |
| Sensor Fusion | Yes, with DMP | Host microcontroller must perform sensor fusion |
| Applications | Motion tracking, orientation sensing, robotics | Motion sensing, tilt sensing, activity monitoring |
3. What is the difference between ADXL345 and ADXL335?
The ADXL345 and ADXL335 are both accelerometers, but they have some key differences:
| Feature | ADXL345 | ADXL335 |
|---|---|---|
| Number of Axes | 3 (x, y, z) | 3 (x, y, z) |
| Output Resolution | 13-bit | 10-bit |
| Output Range | ±2g, ±4g, ±8g, ±16g (selectable) | Typically ±3g (fixed range) |
| Output Type | Digital (I2C/SPI) | Analog |
| Power Consumption | Moderate to High | Relatively Lower |
| Communication Interface | I2C, SPI | Analog Voltage Outputs |
| Additional Features | Higher resolution, selectable ranges | Lower resolution, fixed range |
| Application Flexibility | Well-suited for precise motion sensing | Suitable for simpler applications |
4. Is ADXL345 analog or digital?
The ADXL345 is a popular choice for motion and gravity sensing applications, offering high resolution measurements while maintaining low power consumption. The question often arises whether this accelerometer is analog or digital in nature. The ADXL345 operates primarily as a digital sensor with some inherent analog capabilities based on its internal registers and communication protocol. This allows for precise measurement of acceleration by converting the analog signal into a corresponding 10-bit digital value using advanced algorithms within the device itself. Hence, it offers exceptional performance and versatility to meet diverse project requirements seamlessly.
5. What is the difference between ADXL343 and ADXL345?
The ADXL343 and ADXL345 are both 3-axis accelerometers, but they have some differences in terms of specifications and features:
| Feature | ADXL345 | ADXL343 |
|---|---|---|
| Output Resolution | 13-bit | 16-bit |
| Output Data Rate (ODR) | Selectable | Selectable |
| Low Power Modes | Yes | Likely, with potential optimizations |
| Communication Interface | I2C, SPI | I2C, SPI |
| Applications | Motion sensing, tilt sensing, orientation detection | Motion sensing, potentially with more demanding requirements |
| Temperature Range | Specified operating range | May have a different or extended range |
