- Universal input voltage of 80 - 264VAC or 110 - 370VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -30℃to+70℃
- Low standby power consumption, high efficiency, activePFC
- High I/O isolation test voltage up to 4000VAC
- Output short circuit constant current, over-current, over-voltage, over-temperature protection
- Over-voltage class Ⅲ (designed to meet EN61558)
- Remote sense compensation, remote ON/OFF function
- Safety according to IEC/UL62368, IEC/EN60601, EN60335, EN61558
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LMF500-20B27 AC/DC 500W Enclosed Switching Power Supply

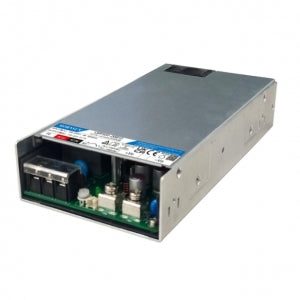

The LMF500-20B27 is a 500W AC/DC enclosed switching power supply from Mornsun. It features a universal AC input of 80-264VAC or 110-370VDC, making it compatible with a wide range of power sources. The power supply also has a DC output of 27V, 18.6A, and an efficiency of up to 93%. This makes it a versatile and efficient option for a variety of applications, including industrial, LED, streetlight control, electricity, security, telecommunications, and smart home.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LMF500-20B27 AC/DC 500W Enclosed Switching Power Supply
Specifications
Power | 500W |
Input voltage | 80-264VAC or 110-370VDC |
Output voltage | 27V |
Output current | 18.6A |
Efficiency | Up to 93% |
Standby power consumption | <0.5W |
Insulation voltage | 4000VAC |
