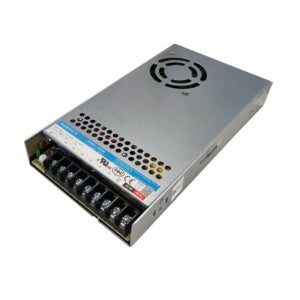

Mornsun LM350-12B36 AC/DC 350W Enclosed Switching Power Supply
Mornsun LM350-12B36 AC/DC 350W Enclosed Switching Power Supply
Out of stock
Regular price
Rs. 3,407
Regular price
Rs. 4,655
Sale price
Rs. 3,407
Unit price
/
per
You save Rs. 1,248
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.
Submit your Bulk Enquiry Here
Contact form
- Input voltage range: 176 - 264VAC or 240 - 370VDC
- Accepts AC or DC input (dual-use of same terminal)
- Ultra low standby power consumption <0.75W@230VAC
- Operating ambient temperature range: -30℃ to +70℃
- LED indicator for power on
- Operating up to 5000m altitude
- Output short circuit, over-current, over-voltage, over-temperature protection
- Built-in DC fan
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM350-12B36 AC/DC 350W Enclosed Switching Power Supply
The LM350-12B36 is a 36V, 350W AC/DC power supply that is ideal for a variety of applications, including industrial automation, control panels, and LED lighting. It features a universal input voltage range of 176-264VAC or 240-373VDC, and an efficiency of up to 89% at 230VAC. The LM350-12B36 also features a number of safety features, including short circuit protection, overvoltage protection, and overload protection.
Features:
- Universal input voltage range: 176-264VAC or 240-373VDC
- Output voltage: 36V
- Output current: 10A
- Power: 350W
- Efficiency: up to 89% at 230VAC
- Short circuit protection
- Overvoltage protection
- Overload protection
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM350-12B36 AC/DC 350W Enclosed Switching Power Supply
Specifications:
Output voltage | 36V |
Output current | 10A |
Power | 350W |
Dimensions | 170 x 120 x 60mm |
Weight | 2.5kg |
Operating temperature | 0-40°C |
Storage temperature | -20-85°C |
