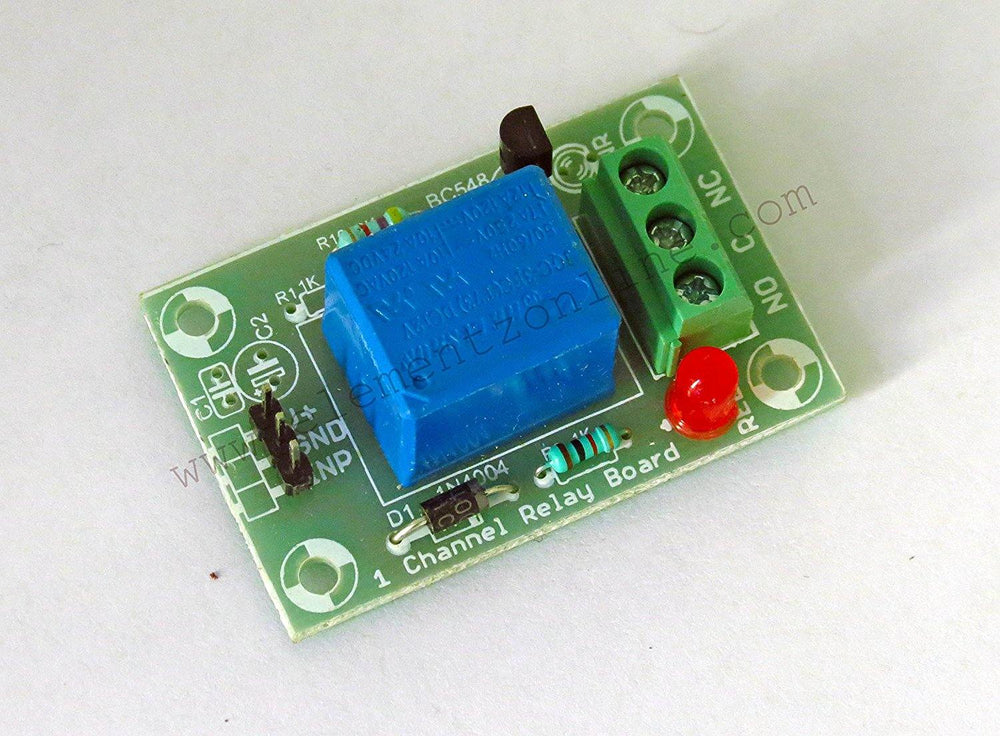

12V 1 Channel Relay Board – Single-channel 12V relay board for control applications. -Relay Module -Robocraze

Robocraze BEST PRICE GUARANTEED

Buy 12 V 1 Channel Relay Board Online in India | Robocraze

Name: 12 V 1 Channel Relay Board
Brand: Robocraze
SKU: TIFRL0051
Price: 48 INR
Availability: OutOfStock
Rating: 5.0 (2 reviews)

12 V 1 Channel Relay Board

Rs 48/-

- 27%

Rs 48/-

~~Rs 66/-~~

Save Rs 18/-

Incl. GST (No Hidden Charges)

Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.

Quantity:

Free Delivery Above ₹999

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Purchase

Cash on Delivery

SKU: TIFRL0051

It can be used to control both ac and dc appliances such as solenoids, motors, lights, fans, etc.
High quality screw terminals (terminal block) provided (c, nc , no) for quick and easy connection.
A freewheeling diode to protect your microcontroller

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name *

Last Name *

Email *

Phone *

Company

Materials List

File(s) size limit is 20MB.

Enter the Captcha *

Captcha challenge – enter the characters shown in the image

Reload Captcha

12 V 1 Channel Relay Board

~~Rs 66/-~~ Rs 48/-

Quantity:

12 V 1 Channel Relay Board

~~Rs 66/-~~ Rs 48/-

Description
Specifications
Shipping & Return

Description

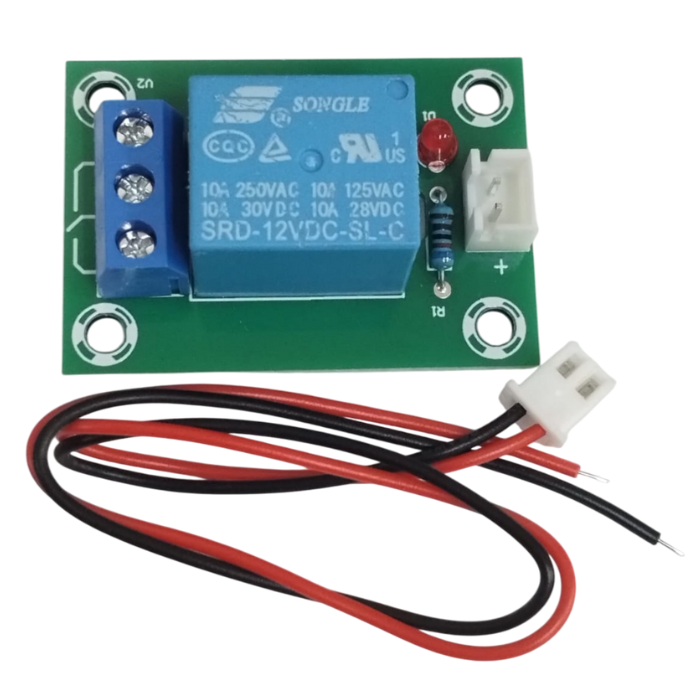

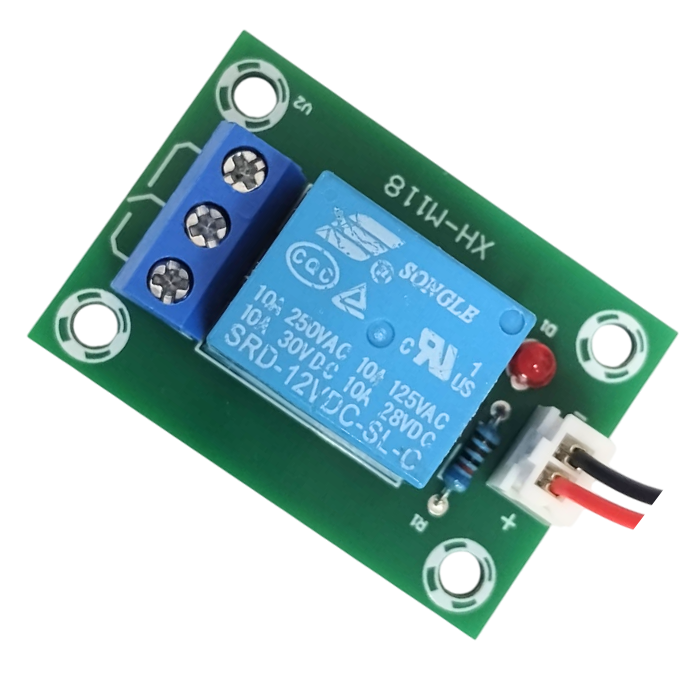

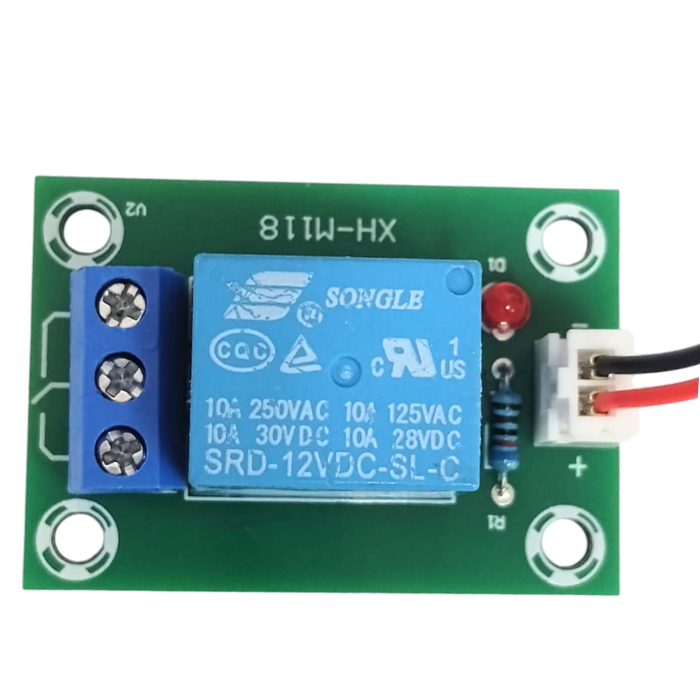

12 V 1 Channel Relay Board

Relay board module is used for controlling higher current loads from your microcontroller development board, pc parallel port or Arduino Uno. This board has one (1) on-board relay which can switch up to 7amps. Relays terminals (c, nc, no) are accessible through screw terminals which makes wiring up the board very easy.

The relay is safely driven by transistor bc547 hence your input device, such as Arduino, is protected from relay circuit. There is a freewheeling diode which will further protect your microcontroller from relay kickback. This is a 12v 1-channel relay interface board which can be controlled directly by a wide range of microcontrollers such as Arduino, avr, pic, arm, 8051 and so on.

Specifications

Package Includes:

1 x 12 V 1 Channel Relay Board

Specifications

Operating Voltage	12V
Number of Channels	x 1
Compatibility	Arduino, avr, pic, arm, 8051 and so on
Dimensions	5 x 3 x 1cms
Weight	5 grams
