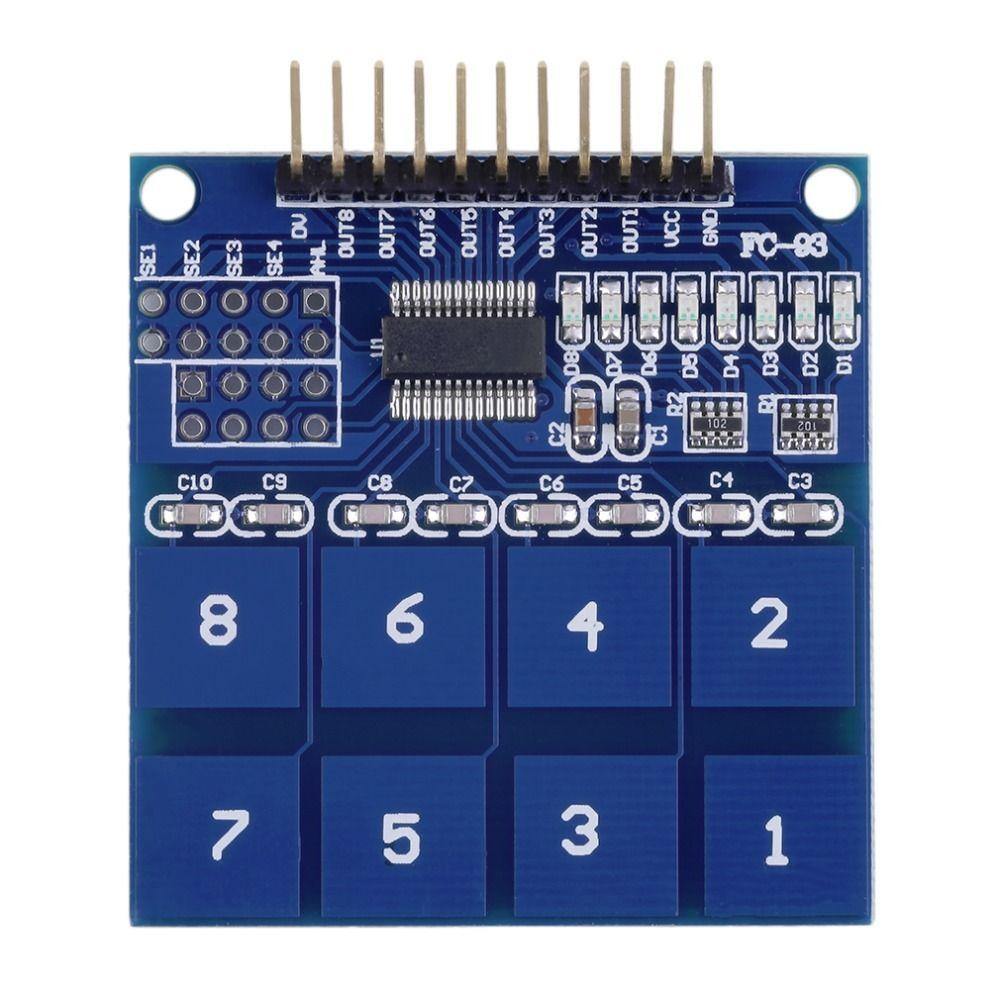

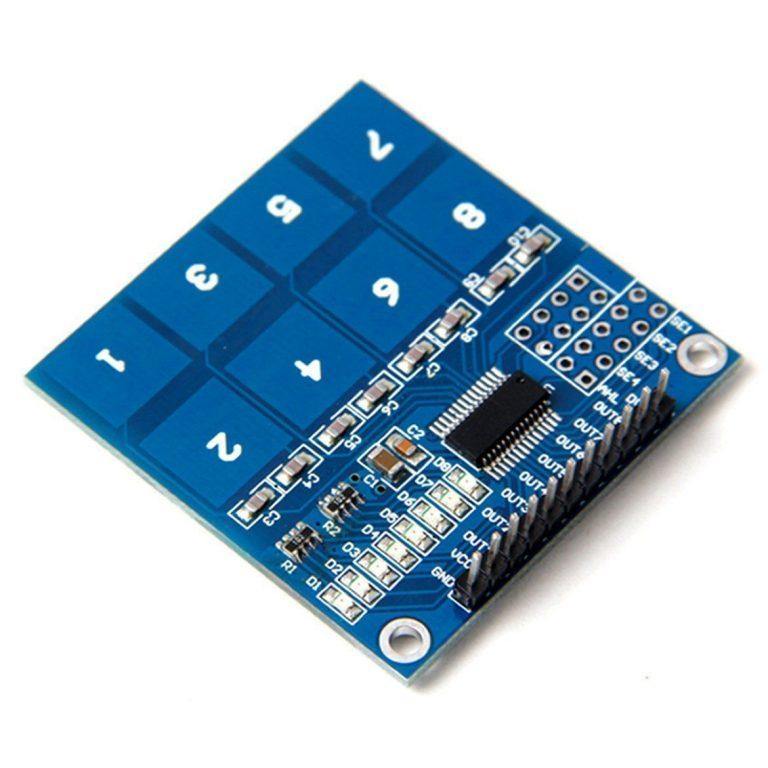

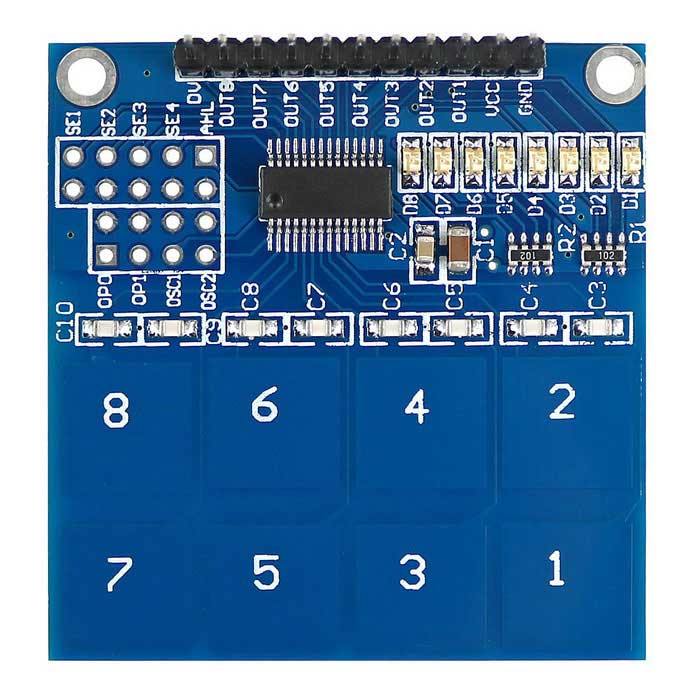

TTP226 8-Channel Capacitive Touch Pad Sensor

TTP226 8-Channel Capacitive Touch Pad Sensor

Regular price Rs. 88
Regular price Rs. 158 Sale price Rs. 88
Sale Sold out 44% off Best Price Guaranteed
You save Rs. 70
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.
Submit your Bulk Enquiry Here

Contact form

  • On-board TTP226 capacitive touch induction IC
  • On-board 8-way level indicator.
  • Adjustable output mode, key output mode, longest time and fast/low power output.

TTP226 8-Channel Capacitive Touch Pad Sensor

The TTP226 8-Channel Capacitive Touch Pad Sensor is capacitive sensing design specifically for touch pad controls. The device built in regulator for touch sensor. Stable sensing method can cover diversity conditions. Human interfaces control panel links through non-conductive dielectric material. The main application is focused at replacing of the mechanical switch or button. The ASSP can independently handle the 8 touch pads with 8 direct output pins.

Package Include:

  • 1 x TTP226 8-way Capacitive Touch Switch Module.

Specifications

Operating Voltage 2.4 ~ 5.5 V (DC)
Output Sink Current 8mA
Response Time (Low Power Mode) 220ms
Dimensions  4.6 x 4.7 x 1.1 cms
Weight  25 grams

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

1.What is the maximum number of touch pads the TTP226 can detect?

  • The TTP226 can detect and measure the electrical capacitance of up to 8 different touch pads.

2.What kind of interface does the TTP226 use to communicate with other devices?

  • The TTP226 can be controlled through an I2C or SPI interface. These sensors are often used in touch-sensitive devices such as touchscreens, buttons, and touchpads.

3.What are some common applications for the TTP226 capacitive touch pad sensor?

  • The TTP226 capacitive touch pad sensor is commonly used in touch-sensitive devices such as touchscreens, buttons, and touchpads. It can also be used in other applications that require the detection of touch or proximity.
